SX011828 Crossed Roller Bearings 140x175x18mm High precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- SX011828
Inner ring(mm)- 140
Outer ring(mm)- 175
Width(mm)- 18
Weight(Kg)- 1.1
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Outer ring split
Same structure Different sizes models
SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

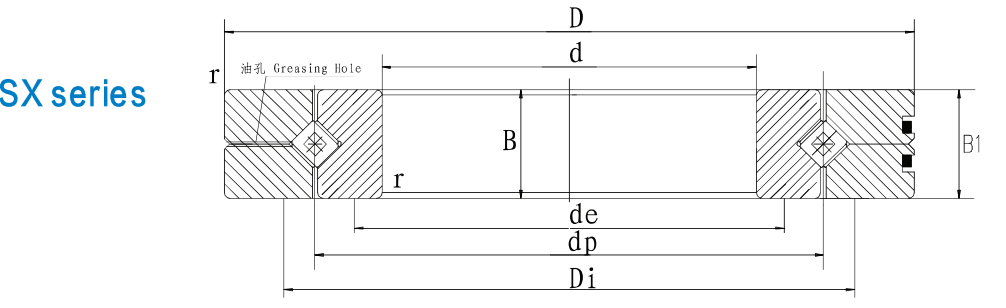

Main parameters
| Identification number | Main dimensious | shoulder height | Basic load rating (axial) | Basic load rating (radial) | weight |
| Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole | r | de | Di | Ca | Coa | Cr | Cor | Kg |
| d | D | Dp | B/B1 | S | KN | KN | KN | KN |
| SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 79.5 | 80.5 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 101.5 | 102.5 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 111.5 | 112.5 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 134.4 | 135.6 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 156.3 | 157.7 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 179.2 | 180.8 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 201.2 | 202.8 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 224.2 | 225.8 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 269.2 | 270.8 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 379.2 | 380.8 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 449 | 451 | 385 | 1699 | 244 | 833 | 24 |
| SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 558.8 | 561.2 | 560 | 2538 | 355 | 1244 | 44 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
china customerized slewing bearing manufacturer
china customerized slewing bearing supplier
china cylindrical bearing suppliers
china cylindrical roller and ball combination slewing rings manufacturer
china cylindrical roller and ball combination slewing rings supplier
china cylindrical roller bearing factory
china cylindrical roller bearing suppliers
china cylindrical roller bearings suppliers
china cylindrical roller slewing ring bearings manufacturer
china cylindrical roller slewing ring bearings supplier
china cylindrical roller thrust bearing supplier
china cylindrical roller thrust bearings factory
china cylindrical roller thrust bearings manufacturers
china cylindrical roller thrust bearings suppliers
china cylindrical thrust roller bearings
Online shopping Address: www.ydpbbearings.com
|
|

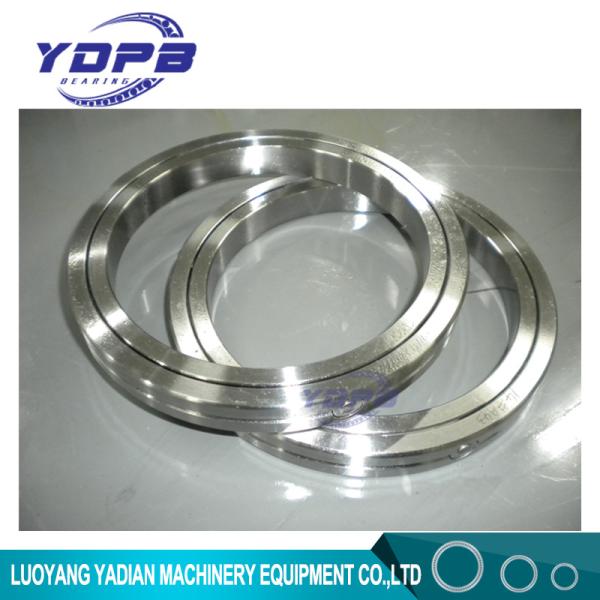

SX011828 x series crossed cylindrical roller bearing price140x175x18mm Images
|
